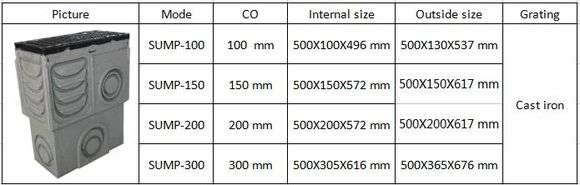

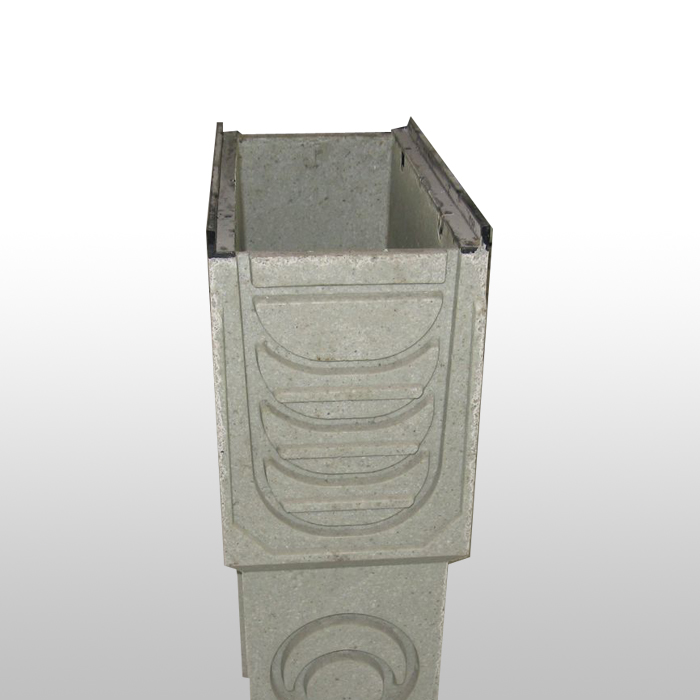

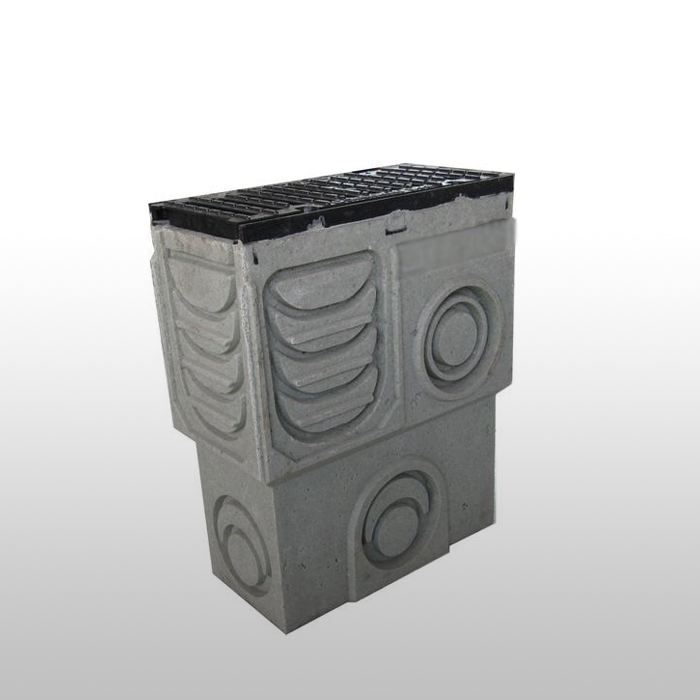

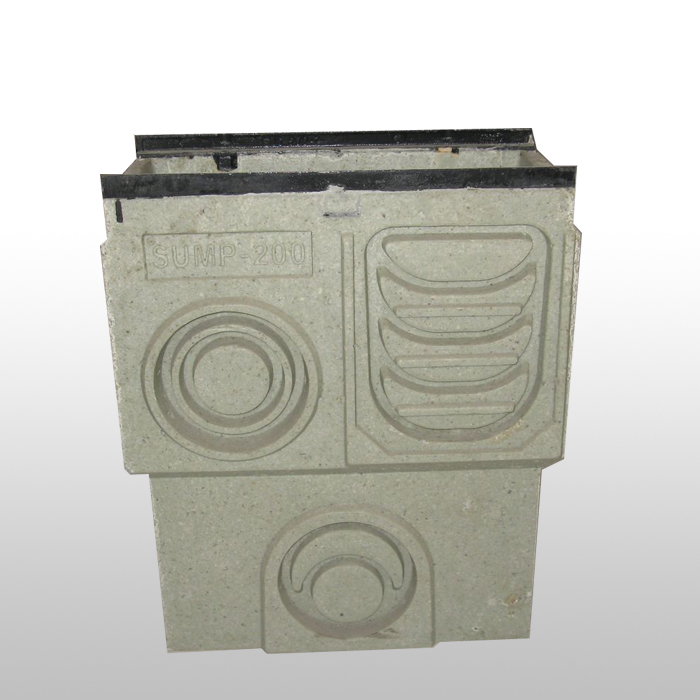

NAME:Polymer concrete sump CO100

Metarial of body : Polymer resin concrete ;

Material of rail : cast iron or steel ;

Clear opening : 100mm ;

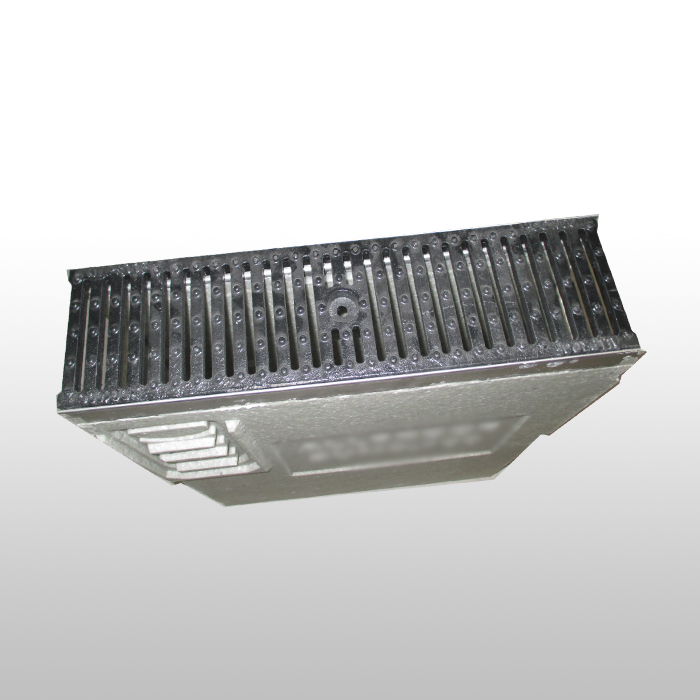

Grating : Cast iron grating



1. Polymer concrete sump are manufactured to the same width as the lineal channel systems so they can be installed along selected sections of the lineal run.

2. The sump can also be used to pick up other small amounts of water from other areas of your site having many inlet and outlet options to be tapped into.

3. The sumps can be entered from either end of our channel system or from a side position when required.

Catalogue :
